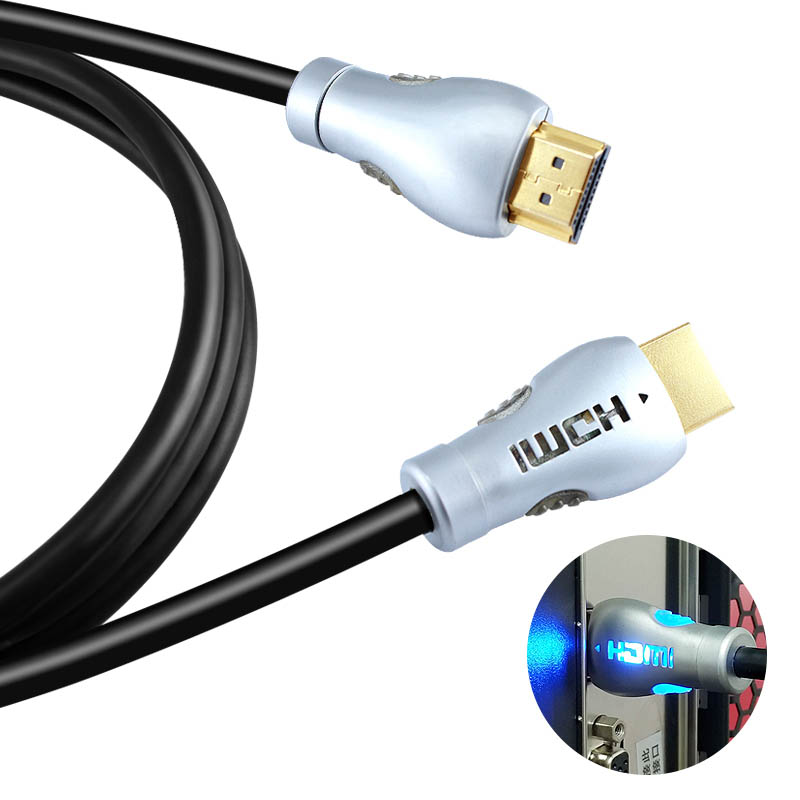

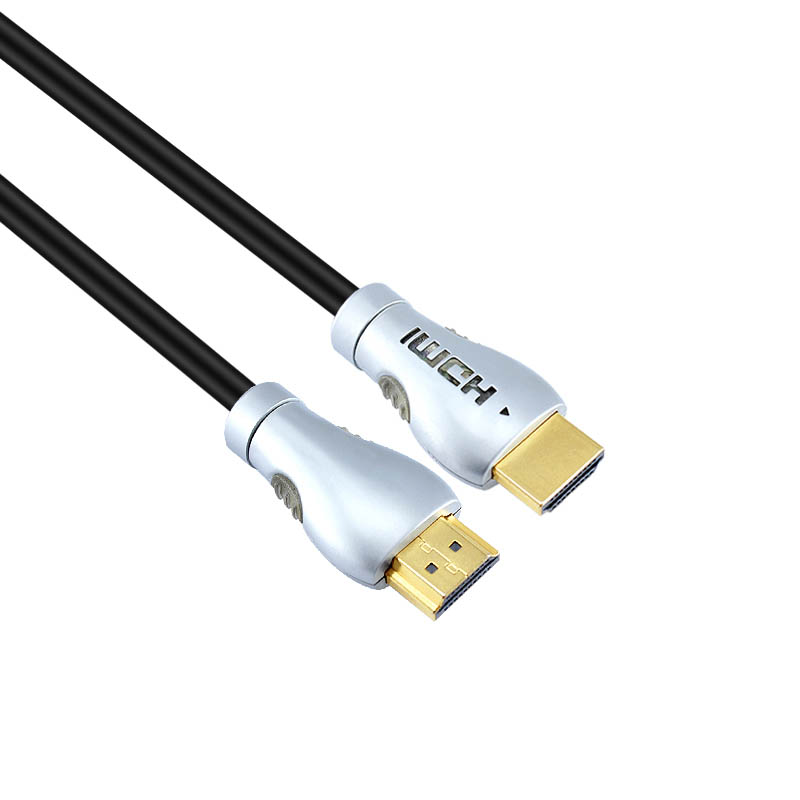

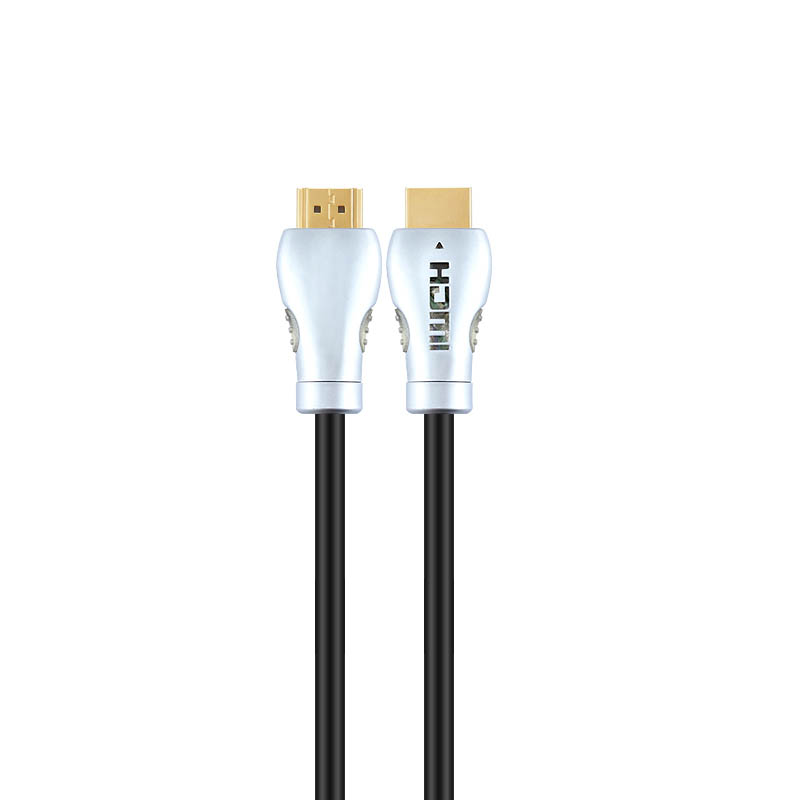

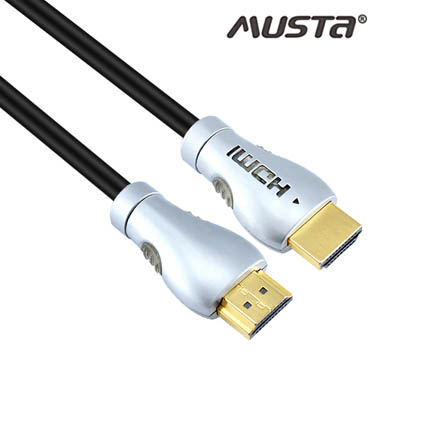

High quality premium HDMI cable 4K with label
Defination Of HDMI 4K
HDMI 4K, which is backwards compatible with earlier versions of the HDMI specification, significantly increases bandwidth up to 18Gbps and adds key enhancements to support market requirements for enhancing the consumer video and audio experience.
Features of HDMI 4K
HDMI 4K significantly increases bandwidth to 18Gbps and includes the following advanced features:
- Resolutions up to 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, for the ultimate video experience.
- Up to 32 audio channels for a multi-dimensional immersive audio experience.
- Up to 1536kHz audio sample frequency for the highest audio fidelity.
- Simultaneous delivery of dual video streams to multiple users on the same screen.
- Simultaneous delivery of multi-stream audio to multiple users (Up to 4).
- Support for the wide angle theatrical 21:9 video aspect ratio.
- Dynamic synchronization of video and audio streams.
- CEC extensions provide more expanded command and control of consumer electronics devices through a single control point.
Connector Type |
HDMI 19Pin Male to HDMI 19Pin Male / Mini HDMI / Micro HDMI |
Connector Finish |
Nickel/24K Gold Plated |
Length |
As your requirement |
Gauge |
22AWG/24AWG/26AWG/28AWG/30AWG/32AWG |
Conductor Plating |
Tinned Copper/OFC |
Shielding Level |
Triple |
Shielding Type |
EMI |
Ferrite Cores |
Yes |
Net Jacket |
No |
Built-in Equalizer |
No |
Supported Resolutions |
3840x2160, 60/50p |
Bandwidth |
up to 340 MHz per channel (1.8 GHz total) |
Data Throughput |
up to 3.4 Gbps per channel (18 Gbps total) |
HDMI Certified |
Yes |
FC Compliant |
Yes |
CE Compliant |
Yes |
ROHS & Reach Compliant |
Yes |
Supports DVD Audio |
Yes |
Supports SACD |
Yes |
Supports Dolby TrueHD™ &DTS-HD Master Audio™ |
Yes |
Voltage Rating |
30V |
