CH-0137
品牌:Musta
Detail

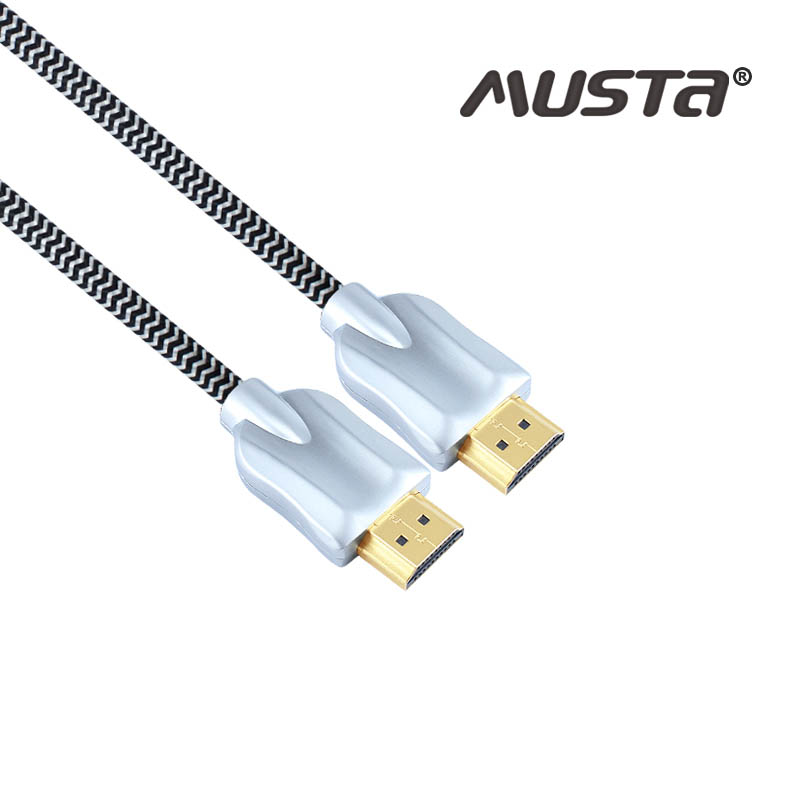

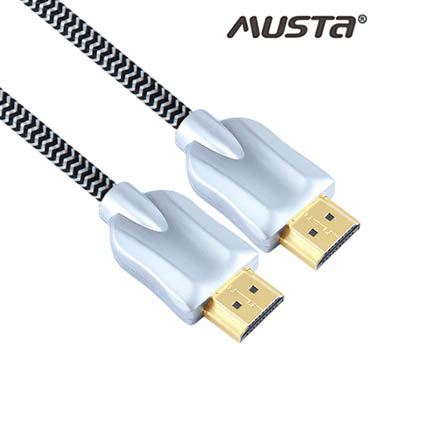

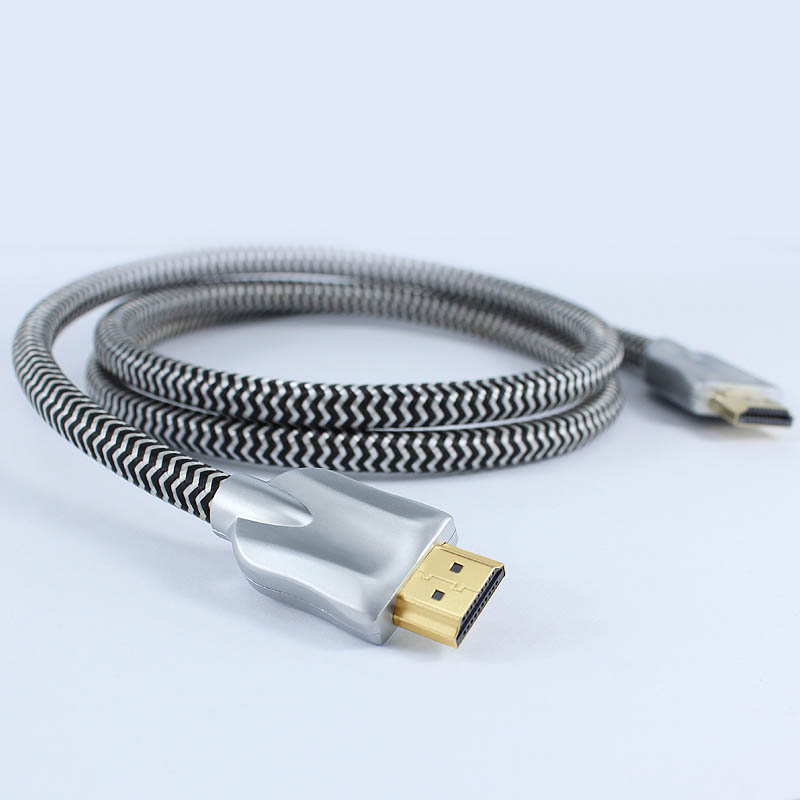

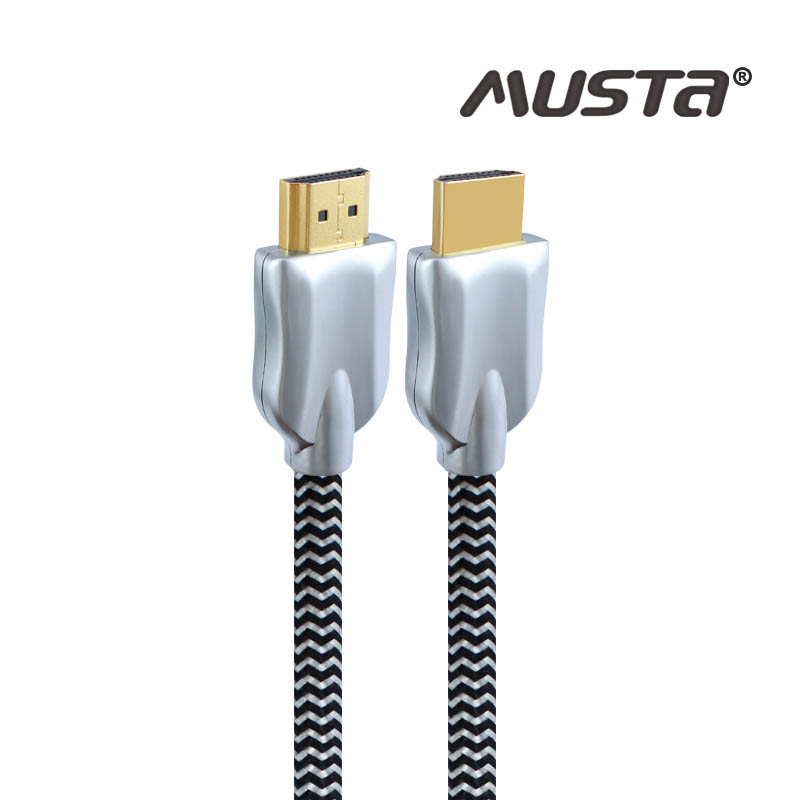

High quality premium HDMI cable 4K with label



Defination Of HDMI 4K

HDMI 4K, which is backwards compatible with earlier versions of the HDMI specification, significantly increases bandwidth up to 18Gbps and adds key enhancements to support market requirements for enhancing the consumer video and audio experience.



Features of HDMI 4K

HDMI 4K significantly increases bandwidth to 18Gbps and includes the following advanced features:

   - Resolutions up to 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, for the ultimate video experience.

   - Up to 32 audio channels for a multi-dimensional immersive audio experience.

   - Up to 1536kHz audio sample frequency for the highest audio fidelity.

   - Simultaneous delivery of dual video streams to multiple users on the same screen.

   - Simultaneous delivery of multi-stream audio to multiple users (Up to 4).

   - Support for the wide angle theatrical 21:9 video aspect ratio.

   - Dynamic synchronization of video and audio streams.

   - CEC extensions provide more expanded command and control of consumer electronics devices through a single control point.





 Connector Type

 HDMI 19Pin Male to HDMI 19Pin Male / Mini HDMI / Micro HDMI

 Connector Finish

 Nickel/24K Gold Plated

 Length

 As your requirement

 Gauge

 22AWG/24AWG/26AWG/28AWG/30AWG/32AWG

 Conductor Plating

 Tinned Copper/OFC

 Shielding Level

 Triple

 Shielding Type

 EMI

 Ferrite Cores

 Yes

 Net Jacket

 No

 Built-in Equalizer

 No

 Supported Resolutions

 3840x2160, 60/50p

 Bandwidth

 up to 340 MHz per channel (1.8 GHz total)

 Data Throughput

 up to 3.4 Gbps per channel (18 Gbps total)

 HDMI Certified

 Yes

 FC Compliant

 Yes

 CE Compliant

 Yes

 ROHS & Reach Compliant

 Yes

 Supports DVD Audio

 Yes

 Supports SACD

 Yes

 Supports Dolby TrueHD™

&DTS-HD Master Audio™

 Yes

 Voltage Rating

 30V
