FEATURES:

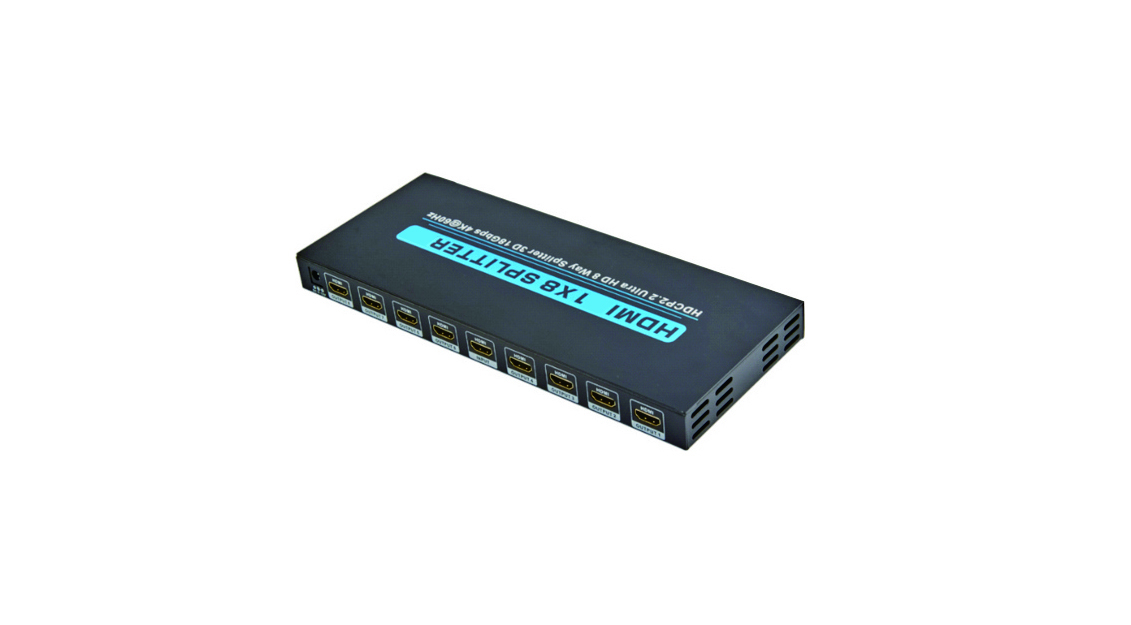

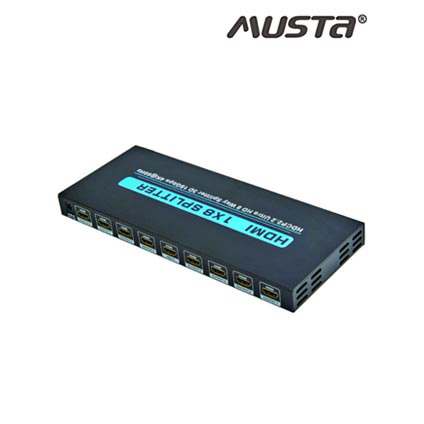

1.One HDMI input signal split to two/four/eight/sixteen HDMI sink devices
2.Support 3D
3.Support CEC
4.Support deep color 30bit, 36bit
5.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
6.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
7.Support signal retiming
8.Support input up to 15metres AWG26 HDMI standard cable length,
output up to 25metres AWG26 cable length
9.No loss of quality
10.Installs in minutes
11.Need DC5V/1A power supply
SPECIFICATIONS:
|
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support video color format |
24bit/deep color 30bit,36bit |
|
Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max bandwidth |
225MHz |
|
Max baudrate |
6.75Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
Input cable distance |
≤15m AWG26 HDMI standard cable |
|
Output cable distance |
≤25m AWG26 HDMI standard cable |
|
Max working current |
500mA |
|
Power adapter format Input |
AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A |
|
Operating Temperature range |
(-15 to +55°C) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
105X50X20mm |
|
Weight |
130g/150g/180g/200g |
